Description

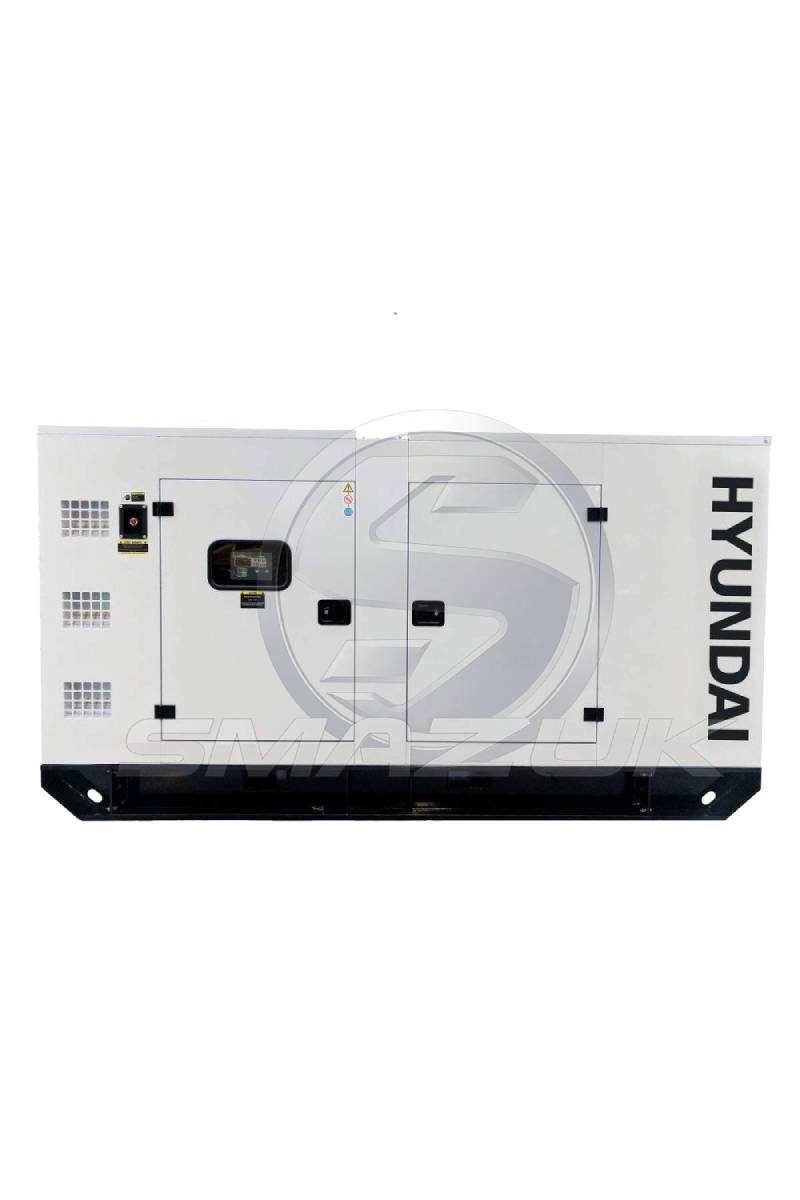

The Hyundai DHY125KSE is a heavy-duty industrial diesel generator built for continuous standby and commercial power applications. Designed with a 1500rpm low-speed diesel engine, silent weatherproof canopy, and three-phase output, it is suitable for factories, warehouses, office buildings, hospitals, commercial facilities, and backup power systems.

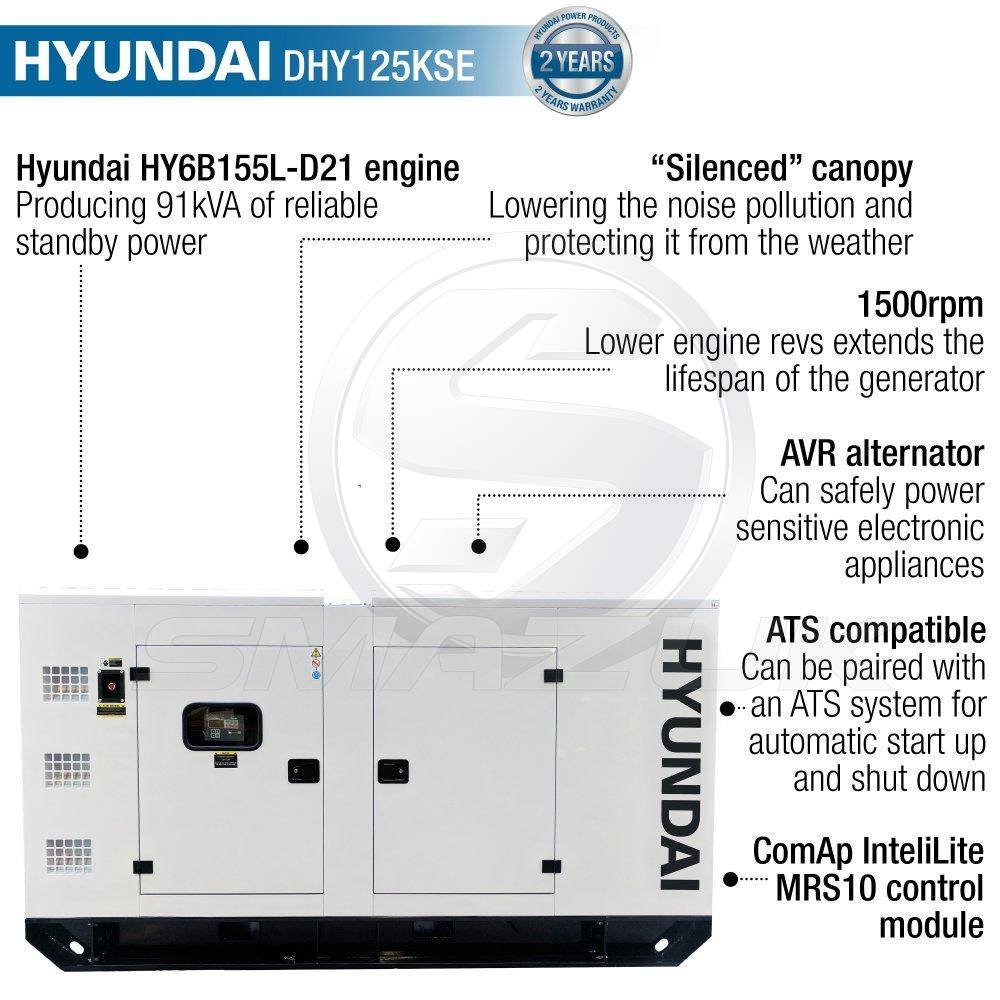

Key Features
- Maximum Output: 125kVA / 100kW
- Prime Power: 112kVA / 90kW
- Hyundai heavy-duty diesel engine
- 1500rpm slow-running industrial platform
- Water-cooled engine system
- Silent weatherproof canopy
- Electric start
- ATS (Automatic Transfer Switch) compatible
- Digital monitoring and protection system
- Industrial AVR alternator for stable voltage output
Technical Specifications
| Specification | Details |
|---|---|
| Model | DHY125KSE |
| Generator Type | Silent Industrial Diesel Generator |
| Standby Power | 125kVA / 100kW |
| Prime Power | 112kVA / 90kW |
| Voltage | 400V / 230V |
| Phase | Three Phase |
| Frequency | 50Hz |
| Engine Model | HY6B155L-D21 |
| Engine Type | Turbocharged Diesel |
| Cylinders | 6 |
| Engine Displacement | 6870cc |
| Cooling System | Water-Cooled |
| Starting System | Electric Start |
| Speed | 1500rpm |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 245–275 Litres |
| Runtime | Up to 9–10.5 Hours |
| Noise Level | 69–72 dB(A) @ 7m |
| Alternator | AVR |
| Protection Rating | IP23 |
| Dimensions | 3400 × 1000 × 1700 mm |
| Weight | Approx. 1900–2000kg |
| Enclosure | Weatherproof Silent Canopy |
