Description

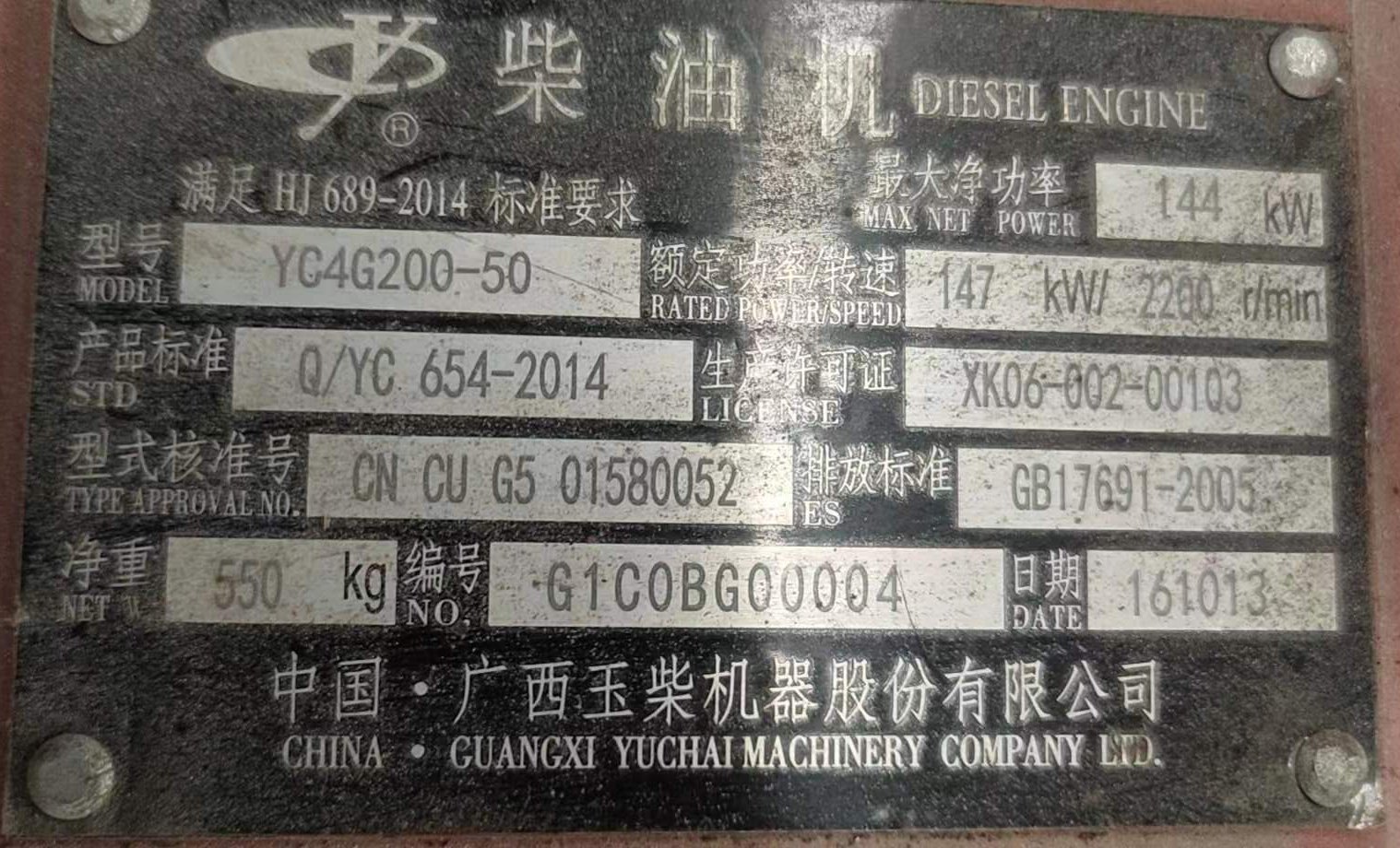

Bus Used engine YC4G200-50 4 cylinders
High dynamic
Leading supercharged intercooling, four-valve and electronic control technology, accurate and rapid combustion organization, good emission, good transient response performance and strong loading capacity. High pressure common rail fuel system.
High reliability
High-strength cylinder block, alloy crankshaft, alloy steel connecting rods and intercooled oil gallery pistons make the engine more durable, lighter and more compact in its class.
High economy
The mature BOSCH electronically controlled common rail features low fuel consumption and low emissions. Complies with non-road country T3 and European S3A emission standards.
Bus Used engine YC4G200-50 4 cylinders
Diesel engines
190~350Ps power coverage
Applicable models: low-speed tractor, standard 8×4 truck, standard 8×4 engineering vehicle, mixer truck, 12-35 ton truck crane and truck-mounted crane, etc.
A new benchmark for Chinese machines.
Comfortable and comfortable journey
Infiltrate quality into every detail, so that high-end is innate, and multiple humanized designs allow passengers to feel comfortable at all times and comprehensively improve their satisfaction.
Multiple consumption reduction, energy saving and high efficiency
Based on the new modular platform, it inherits the economic advantages of the second-generation engine thermal management and the blue core intelligent fuel-saving system, and realizes multiple.
Product parameter
Engine parameters
|
Motor:
|
Yuchai YC4G200-50 | Number of cylinders: | 4 cylinders |
|
Fuel Type:
|
diesel fuel
|
Swept volume:
|
5.2L |
|
Emission standards:
|
Euro 5
|
Maximum output power:
|
147kW |
|
Max horsepower:
|
200PS
|
Maximum torque speed:
|
1100-1600r/min |
|
Engine form:
|
Electronically controlled high-voltage common rail + SCR
|
Maximum torque:
|
720Nm |
|
Rated speed:
|
2200r/min
|
Cylinder arrangement:
|
In-line
|
|
Series:
|
YC4G
|
Engine manufacturers:
|
Yuchai
|
|
Applicable range:
|
8-9 meters bus bus, road bus, tourist bus
|
Air intake form:
|
Pressurized intercooling |
|
Engine net weight:
|
550kg
|
Bore x stroke:
|
112×132mm
|
|
Number of valves per cylinder:
|
4
|
Maximum horsepower range:
|
170-240 hp PS |
